Publication d'Eirini Sariginannidou 2017

Publié le 11 septembre 2017
A+Augmenter la taille du texteA-Réduire la taille du texteImprimer le documentEnvoyer cette page par mail cet article Facebook Twitter Linked In
Communiqué du 7 juillet 2017 au 21 juillet 2017

Le papier "A Chemical Vapor Deposition Route to Epitaxial Superconducting NbTiN Thin Films" a été publié dans Chemistry of Materials

Ici  vous trouverez le papier d'Eirni Sarigiannidou

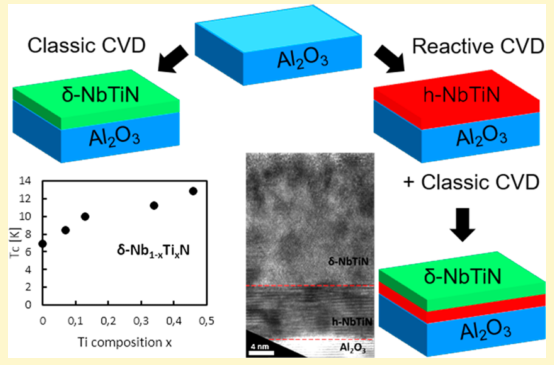

"The deposition of epitaxial superconducting (Nb,Ti)N thin films is addressed with a new approach, using a chemical vapor deposition technique with in situ production of precursors. Both classic and reactive CVD process are optimized toward (i) the control of crystal structure of the deposited films and (ii) the control of stoichiometry and thus of superconducting properties. Films are chararcterized using thermodynamic, structural, and electrical characterization tools. Precession electron diffraction and electron backscatter diffraction techniques provide the phase and orientation mapping of the films down to the nanometer scale. We demonstrate that the cubic phase (structure with the most prominent superconducting properties) is the thermodynamically stable phase under classic CVD from 800 °C up to 1300 °C. The hexagonal (Nb,Ti)N is formed via a “nitridation like” process under reactive CVD, up to 1200 °C. The composition of the films is controlled by the chemistry of the gas phase, whereas the thickness is regulated down to less than 10 nm due to the low growth rate that can be achieved. This technique allows for the control of the superconducting properties of the films, through the control of Ti composition."
