Papier de Caroline Villardie 2019

TiO2/AlZr

Ici vous trouverez le papier de Caroline Villardie

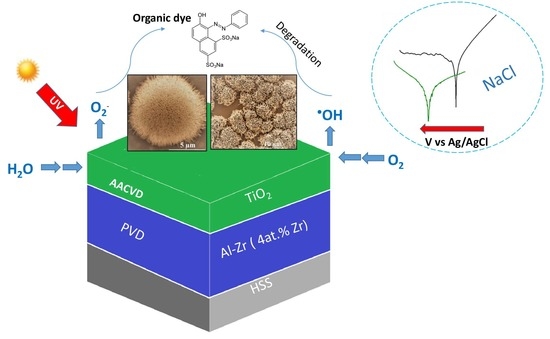

"A novel multi-functional bilayer coating combining an anti-corrosion Al–Zr (4 at.% Zr) underlayer and an anti-biofouling TiO₂ top layer was deposited on high-speed steel (HSS) substrates. Al–Zr (4 at.% Zr) film, deposited by DC magnetron sputtering, which is a single phased supersaturated solid solution of Zr in Al, is used to provide sacrificial corrosion resistance of steels and TiO₂ is added as a top layer to induce photocatalytic activity and hydrophilic behavior which can generate antifouling properties in order to slow down the biofouling process. The top TiO₂ films, deposited at 550 °C by AACVD (aerosol-assisted chemical vapor deposition), consisting of anatase TiO₂ microflowers physically attached to the TiO₂ thin films present a high decomposition rate of Orange G dye (780 × 10⁻¹⁰ mol L⁻¹·min⁻¹). The enhanced photocatalytic performance is associated with the rough network and the presence of TiO₂ microflowers capable of supporting the enhanced loading of organic contaminants onto the film surface. Electrochemical tests in saline solution have revealed that bilayer films provide cathodic protection for the steel substrate. The Al–Zr/TiO₂ bilayer presents a lower corrosion current density of 4.01 × 10⁻⁷ A/cm² and a corrosion potential of −0.61 V vs. Ag/AgCl, offering good protection through the preferential oxidation of the bilayer and an increased pitting resistance. The proposed functionalized coating combining anticorrosion and photocatalytic properties is a promising candidate for an anti-fouling system in sea water."

Ces travaux sont co-financés par CEMAM
