Paper by Silvère Panisset 2025
The paper entitled "LaPrNiO4+? Nano-Columnar Thin Films as Oxygen Electrodes for Reversible Solid Oxide Cells" has been published in ENERGY & ENVIRONMENTAL MATERIALS
-
- to
Here you will find the article by Silvère Panisset

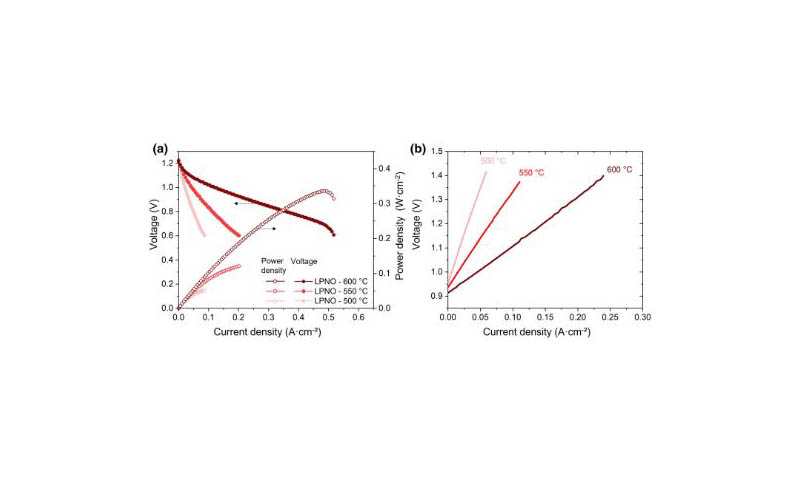

"This work explores the potential of La1-xPrxNiO4+δ thin films fabricated by Pulsed Injection Metal–Organic Chemical Vapor Deposition as oxygen electrodes for low-temperature solid oxide cells. La1-xPrxNiO4+δ materials offer promising mixed ionic and electronic conductivity and high oxygen reduction reaction kinetics. In this study, we focus on the microstructural and electrochemical properties of LaPrNiO4+δ thin films deposited at various temperatures (600–650 °C), revealing that a two-temperature deposition process yields nano-architectured films with a dense bottom film and a porous nano-columnar top layer of the same material. Electrochemical impedance spectroscopy and electrical conductivity relaxation experiments demonstrate enhanced surface exchange coefficients compared to bulk LaPrNiO4+δ and La2NiO4+δ and high performance, with polarization resistances as low as 0.10 Ω cm2 at 600 °C and 1.00 at 500 °C. To better understand the electrochemical behavior of these electrodes, we investigated the limiting mechanisms of oxygen reduction by analyzing the kinetic response to varying oxygen partial pressures and performing detailed impedance analyses. These nano-columnar LaPrNiO4+δ oxygen electrodes were also deposited on commercial half-cells, enabling the resulting full cells to operate successfully in both reversible solid oxide fuel cell and electrolysis cell modes, reaching a performance of 0.34 W cm−2 at 600 °C in reversible solid oxide fuel cell mode. This work underscores the promise of LaPrNiO4+δ thin films for efficient low-temperature-solid oxide cells while addressi
"This work explores the potential of La1-xPrxNiO4+δ thin films fabricated by Pulsed Injection Metal–Organic Chemical Vapor Deposition as oxygen electrodes for low-temperature solid oxide cells. La1-xPrxNiO4+δ materials offer promising mixed ionic and electronic conductivity and high oxygen reduction reaction kinetics. In this study, we focus on the microstructural and electrochemical properties of LaPrNiO4+δ thin films deposited at various temperatures (600–650 °C), revealing that a two-temperature deposition process yields nano-architectured films with a dense bottom film and a porous nano-columnar top layer of the same material. Electrochemical impedance spectroscopy and electrical conductivity relaxation experiments demonstrate enhanced surface exchange coefficients compared to bulk LaPrNiO4+δ and La2NiO4+δ and high performance, with polarization resistances as low as 0.10 Ω cm2 at 600 °C and 1.00 at 500 °C. To better understand the electrochemical behavior of these electrodes, we investigated the limiting mechanisms of oxygen reduction by analyzing the kinetic response to varying oxygen partial pressures and performing detailed impedance analyses. These nano-columnar LaPrNiO4+δ oxygen electrodes were also deposited on commercial half-cells, enabling the resulting full cells to operate successfully in both reversible solid oxide fuel cell and electrolysis cell modes, reaching a performance of 0.34 W cm−2 at 600 °C in reversible solid oxide fuel cell mode. This work underscores the promise of LaPrNiO4+δ thin films for efficient low-temperature-solid oxide cells while addressi
